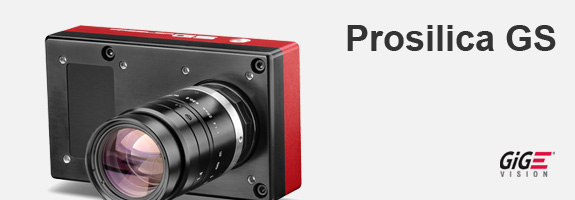

Right-angle CCD camera with Gigabit Ethernet interface
The Prosilica GS cameras are periscope-type CCD cameras for industrial and microscopy applications. The compact GS-Series cameras have a Gigabit Ethernet interface (GigE Vision®) that allows for very fast frame rates and long cable lengths.
- Ultra-compact size - 2.2” x 3.75” x 1”
- Very rugged
- Fast frame rates to 120 fps
- VGA to 5 Megapixels
- Landscape or portrait orientation
- Optional white medical housing
- Modular options available
Specification
| Prosilica GS |
650 |
660 |
1380 |
2450 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
659 x 493 |
659 x 493 |
1360 x 1024 |
2448 x 2050 |
| Sensor |
Sony ICX424 |
Sony ICX618 |
Sony ICX285 |
Sony ICX625 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 1/3 |
Type 1/4 |
Type 2/3 |
Type 2/3 |
| Cell size |
7.4 µm |
5.6 µm |
6.45 µm |
3.45 µm |
| Lens mount |
C/CS |
C/CS |
C |
C |
| Max frame rate at full resolution |
120 fps |
119 fps |
30 fps |
15 fps |
| A/D |
14 bit |
| On-board FIFO |
16 MB |
|
Output |
| Bit depth |
8/12 bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| TTL I/Os |
1 input, 1 output |
| Opto-coupled I/Os |
1 input, 1 output |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Power requirements (DC) |
5V - 25V |
| Power consumption (12 V) |
3W |
3W |
3.5W |
3.8W |
| Mass |
184 g |
184 g |
187 g |
186 g |
Body Dimensions
(L x W x H in mm) |
96x56x26 including connectors, w/o tripod and lens |
| Regulations |
CE, FCC, Class A, RoHS |
|
